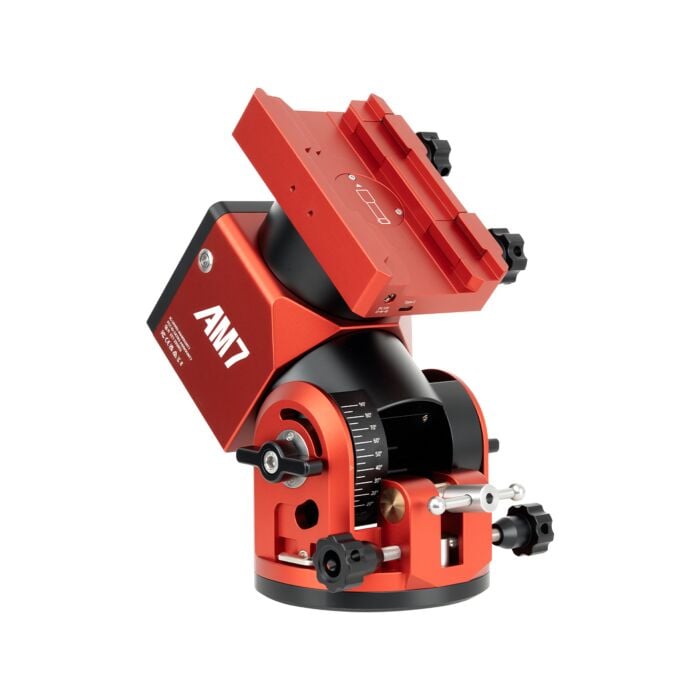

The AM7 supports up to 20 kg of payload without a counterweight and up to 30 kg with counterweights installed. This gives you flexibility to run lighter travel rigs with minimal setup or heavier imaging systems when maximum stability is needed.

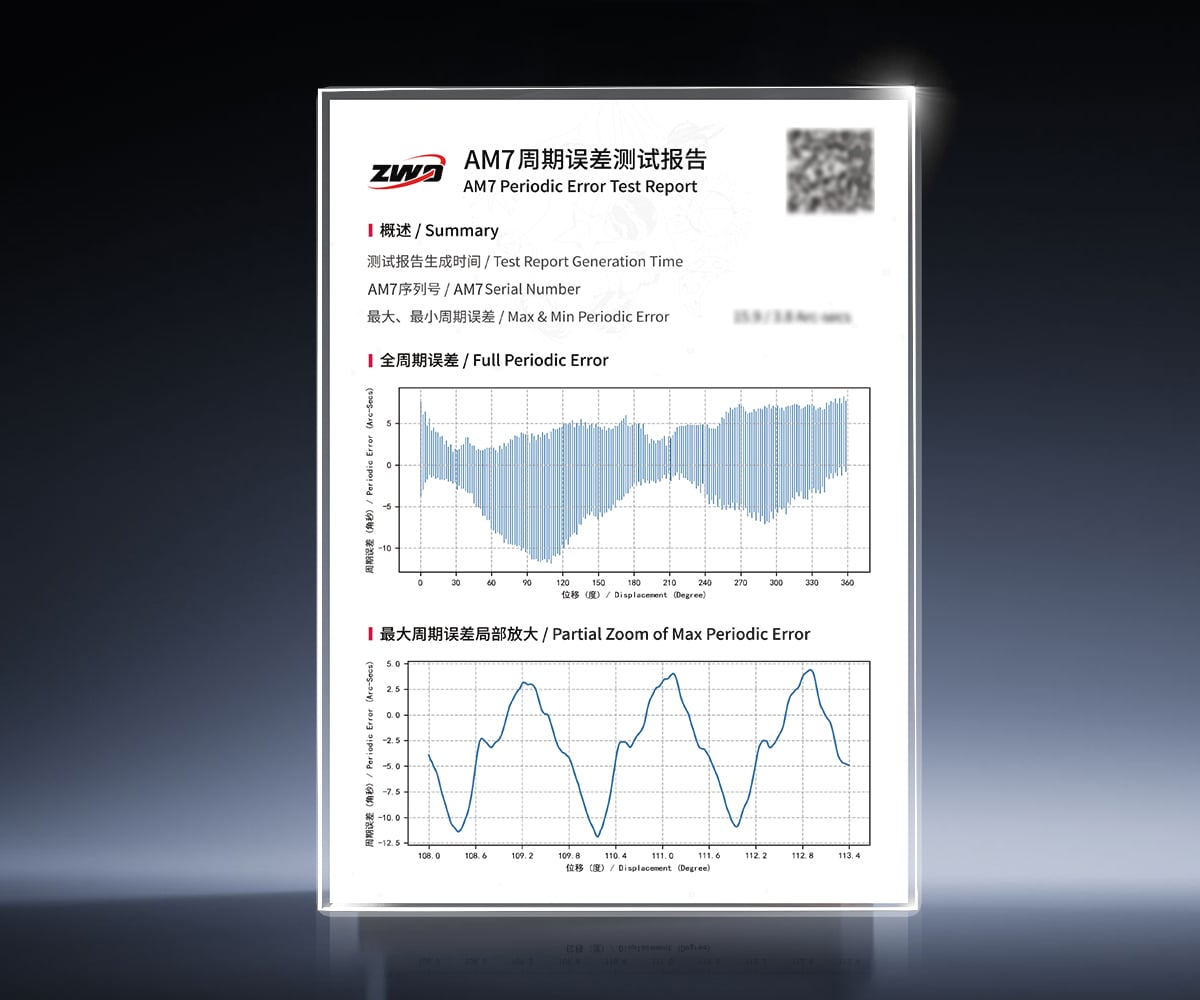

Each mount is individually tested before shipping and includes a unique periodic error test report. Periodic error is controlled within plus or minus 10 arcseconds, providing dependable tracking accuracy for long exposure imaging and precise GoTo performance.

At the core of the AM7 is ZWO’s custom harmonic drive system, developed specifically for astrophotography. The total harmonic gear reduction ratio of 300 to 1 delivers strong torque and smooth motion under load. This design minimizes backlash and helps maintain consistent tracking performance, even with heavier telescopes.

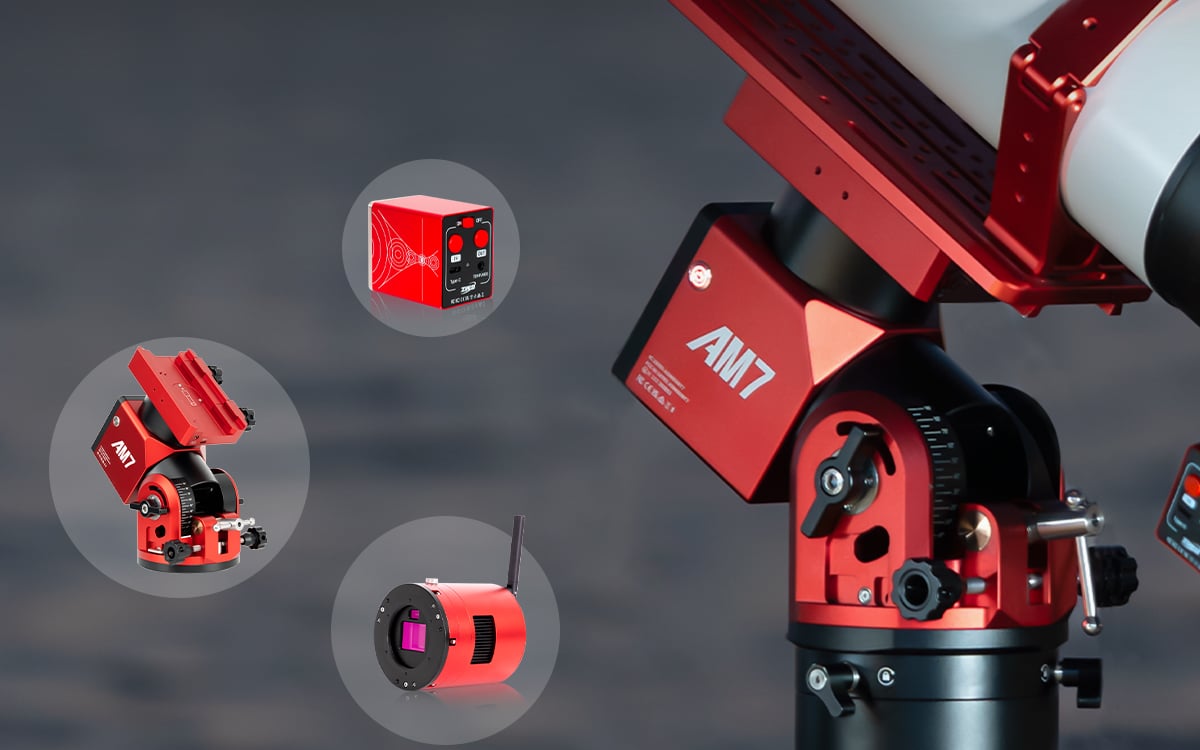

The AM7 is built to reduce cable clutter and simplify setup. Integrated USB C and DC power ports are located directly on the dovetail saddle, allowing you to route power and data through the mount instead of around it. This results in a cleaner rig, fewer snags, and faster setup and teardown.

A magnetic hex wrench is included and stores directly on the mount body, so it is always within reach when adjustments are needed in low light conditions.

The AM7 supports both equatorial and alt azimuth modes, allowing one mount to handle both imaging and visual observing.

Equatorial mode is optimized for accurate sky tracking and astrophotography.
Alt azimuth mode is ideal for visual observing, quick sessions, and outreach events.

Mode selection is confirmed by indicator lights on the mount, with red indicating equatorial mode and green indicating alt azimuth mode.

With a full altitude adjustment range from 0 to 90 degrees, the AM7 can be aligned and used at any latitude on Earth. A two stage adjustment system allows fine control from 0 to 60 degrees using the altitude knob, and extended adjustment from 30 to 90 degrees using a secondary hex screw position. This makes the mount suitable for travel, remote observing, or permanent installations anywhere in the world.

The AM7 works seamlessly with the Sky Atlas mobile app for iOS and Android, offering live star maps, object search, GoTo commands, and curated observing suggestions.

It is also fully compatible with ASIAIR in station mode. Because both products are part of the ZWO ecosystem, integration is straightforward and reliable, with ongoing software updates designed to work together without driver conflicts.

The AM7 offers multiple control methods so you can choose what fits your observing style.

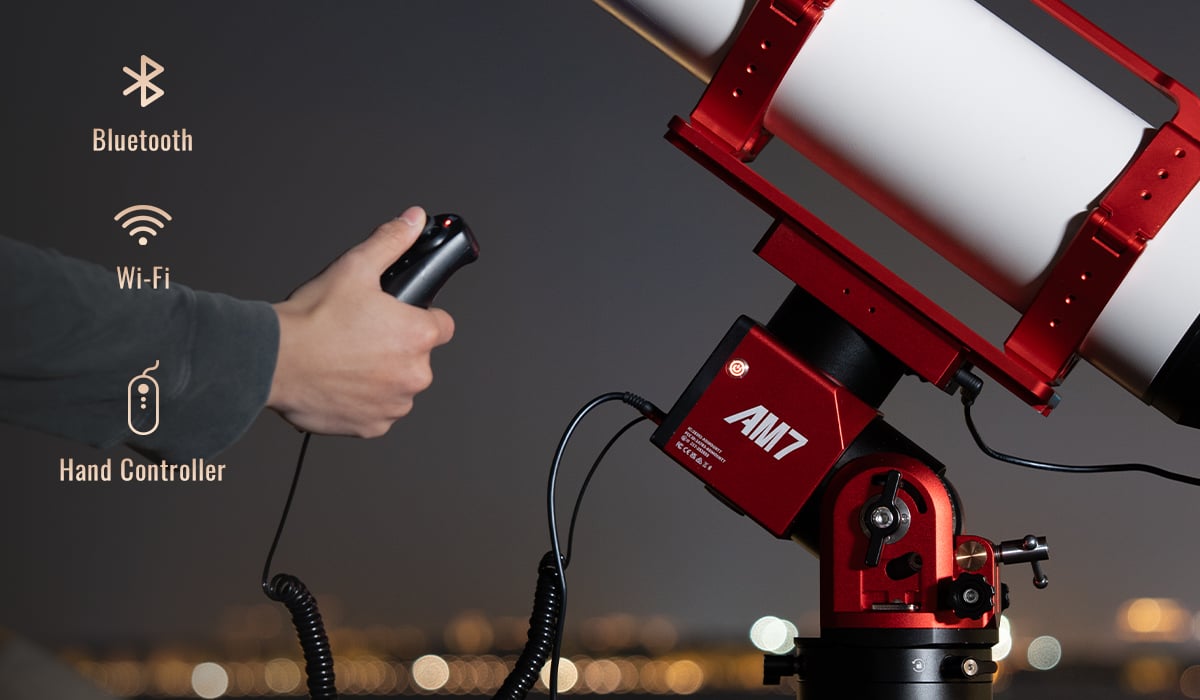

Wi Fi and Bluetooth connectivity allow wireless control from a smartphone or tablet. Bluetooth enables quick direct connections without switching networks, while Wi Fi provides a stable option for more complex setups.

The included joystick style smart hand controller serves as both a control interface and a connection hub. It features an integrated Wi Fi hotspot, a simple web interface for settings, and built in firmware update support for both the mount and controller.

Bluetooth can be easily enabled or disabled, making the AM7 suitable for environments that require tighter wireless control, such as remote observatories.

Despite its high payload capacity, the AM7 weighs approximately 6.5 to 6.75 kg, making it easy to transport and set up in the field. The mount is rated for operation down to minus 20 degrees Celsius, ensuring reliable performance during cold winter observing sessions.
